Corn Flaking Machine

Flaking Mills offer turnkey solutions with processing capacities ranging from 1 to 500 tons per day for oat, corn, barkey, sorghum, black rice, quanioa etc. www.immy.cn / www.immyhitech.com

Corn Flaking Mills


Corn Flaking Mills offer turnkey solutions with processing capacities ranging from 1 to 500 tons per day for oat, corn, barkey, sorghum, black rice, quanioa etc.  www.immyhitech.com







Flaking Mills offer turnkey solutions with processing capacities ranging from 1 to 500 tons per day for oat, corn, barkey, sorghum, black rice, quanioa etc.

www.immy.cn  / www.immyhitech.com



Flaking Mills from 25TPD to 500 TPD





2.jpg    3.jpg


F8150H-300T                                                     F8100-150T
Flaking mill                                                                Flaking mill


Output:280-300T/24H                            Output : 100-150t/24h
Double driven motor                            Double driven motor
Square Support System                          Square Support System
Roller size :800*1500MM                        Roller size :800*1500MM
China's First Heavy Roll                       China's First Heavy Roll
Total power: 55kW*2+0.55kW+1.5kW               Total power: 55kW*2+0.55kW+1.5kW
weight 11.5T                                   weight 7.5T
one year warranty                              one year warranty




4.jpg         Oils Embryo Rolling Machine.jpg


    FS6080-50T                                                         FS4080-25T
    Flaking mill                                                          Flaking mill

Output : 50-80t/24h                                                  Output : 25-30t/24h
Double driven motor                                                Double driven motor
Round Support System                                            Round Support System
Roller size :600*800mm                                            Roller size :600*800mm
Select high nickel-chromium-molybdenum            Select high nickel-chromium-molybdenum
alloy rolls                                                                  alloy rolls
Total power : 18.5kW*2+0.55kW                              Total power 11kW*2+0.55kW
Weight : 5t                                                                 Weight :2.5t
one year warranty                                                     one year warranty



Model indication:F=FLaking; dia of roller: 8=800mm; length of roller:150=1500mm;
single driven motor S=Single;high configuration H=High

Basic configuration :whole closed structure. Both side are with heat dissipation network. round bearing base .front and back door plate can be


 opend , easy to be cleaned .Both sides of bottom have material receiving port ,easy to observe the effect of material.


Roller:The high Ni Cr Mo alloy roll is poured by German centrifuge ,the hard layer is uniform. Rolls are dynamically balanced


Pulley: The imported belt tightening process is adopted for the belt pulley


Hydraulic system :the high-efficiency and energy-saving intermittent hydraulic pump station ensures the stable operation of the equipment.


(The spring flaking mill does not includ this item)


Equipment base :the base is welded steel ,which is quenched and tempered to eliminate internal stress and ensure that the base


is not deformed


Leak proof device:leakage proof material by pinnacle baffle


Scraper system:Easy to clean up the materils attached to the roller .The blade can be removed and adjusted .


Tight-roll function:hydraulic tighten roller  (suit for hydraulic flaker );


Spring tighten roller (suit for spring flaker )

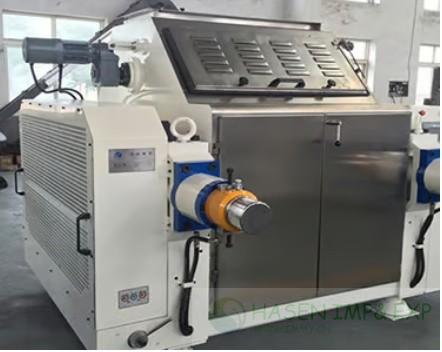

PICTURE OF FLAKING MILL







https://youtu.be/2ULVuHEhTws

https://youtu.be/FGysgqYqreo
